QD+ (Line filter)
8102372703

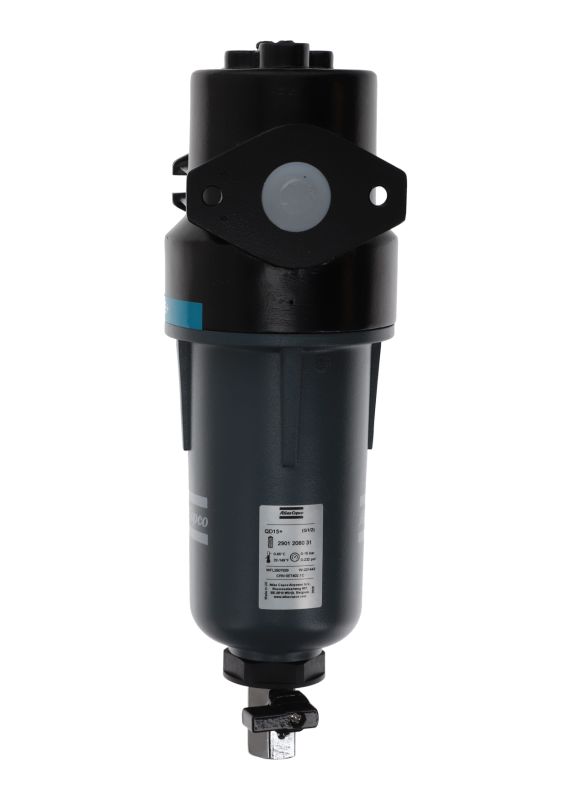

QD 15+ activated carbon filter for removal of oil vapor and hydrocarbon odors
• Model - QD
• Size - 15+
• Flanged connection - G 1/2"
• inPASS (Y/N) - N
Images may differ from the actual product
Images may differ from the actual product
• Model - QD
• Size - 15+
• Flanged connection - G 1/2"
• inPASS (Y/N) - N
QD+ Series
High-performance oil vapor filters
QD+ filters efficiently reduce hydrocarbons, odors and oil vapor in your compressed air to protect your investment, equipment and processes.
The macro-structured activated carbon will reduce the residual oil content through adsorption to less than 0.003 mg/m³. The pressure drop is low and remains constant during the lifetime of the filter.
Your benefits:
• Maximum oil vapor removal - The macro-structured activated carbon is specifically designed to efficiently and completely remove oil vapors from compressed air with minimal dust release.
• Minimal operating costs - Low pressure losses thanks to an optimal flow design.
• Low-cost maintenance - Ribbed housing ensures easy removal of the filter bowl. The push-in element and drain connection were designed for effortless replacement. The service indicator shows (preventive) maintenance alerts.
