UD+

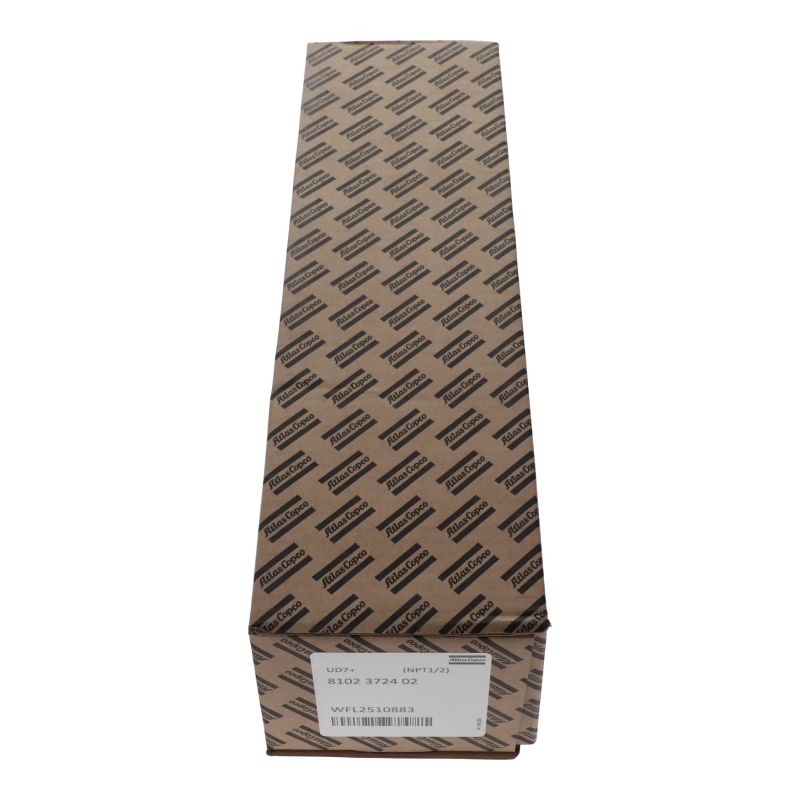

8102372402 - UD7+ (NPT1/2)
UD+ two-in-one oil coalescing filter
•High-efficiency glass fiber Nautilus technology ensures a low pressure drop.
•Coarse 3D-structured layer/barrier provides efficient oil drainage and prevents re-entry of oil droplets into the air stream.
The images shown are for illustration purposes only and may not be an exact representation of the product
The images shown are for illustration purposes only and may not be an exact representation of the product
Product Description
By removing contaminants from the air stream, the right filter can significantly lower operating costs, ensure that even the most stringent air purity standards are met and extend the service life of air systems and pneumatic equipment.
And there are no better filters than those from Atlas Copco. We have assembled a dedicated team of experts to develop cutting-edge filtration solutions. Over the years, they have innovated filter types and designs, processes and filtration media to give you best-in-class precision, reliability and lifetime.
Product information
| Specification | Value |
|---|---|
| Weight | 1240 GRM |
Technical details
| Specification | Value |
|---|---|
| Flanged connection | NPT 1/2 " |
| inPASS | No |
| Maximum air inlet temperature | 50 °C |
| Maximum air inlet temperature (°F) | 122 °F |
| Weight | 1 kg |
| Weight (Mass) (lb) | 3 lb |
| Maximum ambient temperature | 50 °C |
| Maximum ambient temperature (°F) | 122 °F |
| Maximum compressed air inlet pressure | 16 bar(g) |
| Maximum compressed air inlet pressure (psi(g)) | 232 psi(g) |
| Minimum ambient temperature | 1 °C |
| Minimum ambient temperature (°F) | 34 °F |
| Nominal volume flow at filter inlet (2) | 7 l/s |
| Nominal volume flow at filter inlet (2) (cfm) | 15 cfm |
| Air inlet temperature (°C) | 20 °C |
| Air inlet temperature (°F) | 68 °F |
| Compressed air inlet effective pressure (bar(g)) | 7 bar(g) |
| Compressed air inlet effective pressure (psi(g)) | 102 psi(g) |
| Cooling medium inlet temperature (°C) | 20 °C |
| Cooling medium inlet temperature (°F) | 68 °F |
| Outlet oil aerosol concentration (mg/m³) | 0.001 mg/m³ |
| Outlet oil aerosol concentration (mg/m³) | 0.001 mg/m³ |
