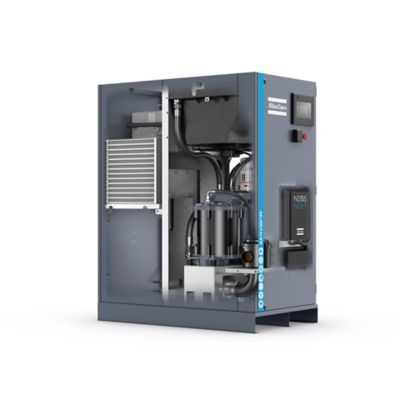

Best-in-class variable speed drive oil-injected screw compressor

Bilder können vom tatsächlichen Produkt abweichen

• Max Working Pressure - 13BAR

• Configuration - Floor Mounted

• Integrated dryer - Yes

• Regulation - MK5STCHNOI

• Supply - 230/3/50

• Motor power - 11KW

• FAD at Design Pressure - 33.4

• Max Working Pressure - 13BAR

• Configuration - Floor Mounted

• Integrated dryer - Yes

• Regulation - MK5STCHNOI

• Supply - 230/3/50

• Motor power - 11KW

• FAD at Design Pressure - 33.4

Spezifikation	Wert
Gewicht	581 KGM

	Artikelnummer	Frequenz	Integrated dryer	Versorgungsspannung	Arbeitsdruck	Free Air Delivery at eff working pressure at min speed	Preis und Verfügbarkeit
Artikelnummer		Frequenz	Integrated dryer	Versorgungsspannung	Arbeitsdruck	Free Air Delivery at eff working pressure at min speed	Preis und Verfügbarkeit
	8153347960 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 10bar, floor mounted	50 Hz	Yes	230 V	10 bar	5.7 l/s	-
8153347960 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 10bar, floor mounted		50 Hz	Yes	230 V	10 bar	5.7 l/s	-
	8153347962 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted	50 Hz	Yes	230 V	13 bar	6.9 l/s	-
8153347962 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted		50 Hz	Yes	230 V	13 bar	6.9 l/s	-
	8153347974 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 10 bar	50 Hz	Yes	400 V	10 bar	5.7 l/s	-
8153347974 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 10 bar		50 Hz	Yes	400 V	10 bar	5.7 l/s	-
	8153347976 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 13 bar	50 Hz	Yes	400 V	13 bar	6.9 l/s	-
8153347976 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 13 bar		50 Hz	Yes	400 V	13 bar	6.9 l/s	-
	8153347985 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 10 bar	50 Hz	Yes	400 V+N	10 bar	5.7 l/s	-
8153347985 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 10 bar		50 Hz	Yes	400 V+N	10 bar	5.7 l/s	-
	8153347986 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted	50 Hz	Yes	400 V+N	13 bar	6.9 l/s	-
8153347986 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted		50 Hz	Yes	400 V+N	13 bar	6.9 l/s	-
	8153347995 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	230 V	10 bar	5.7 l/s	-
8153347995 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	230 V	10 bar	5.7 l/s	-
	8153347997 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	230 V	13 bar	6.9 l/s	-
8153347997 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	230 V	13 bar	6.9 l/s	-
	8153348006 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 10 bar	50 Hz	Yes	400 V+N	10 bar	5.7 l/s	-
8153348006 GA11 VSDS Erstklassiger Schraubenkompressor mit variabler Drehzahl und integriertem Trockner - 10 bar		50 Hz	Yes	400 V+N	10 bar	5.7 l/s	-
	8153348007 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted	50 Hz	Yes	400 V+N	13 bar	6.9 l/s	-
8153348007 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted		50 Hz	Yes	400 V+N	13 bar	6.9 l/s	-
	8153348016 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	400 V	10 bar	5.7 l/s	-
8153348016 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	400 V	10 bar	5.7 l/s	-
	8153348018 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	400 V	13 bar	6.9 l/s	-
8153348018 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	400 V	13 bar	6.9 l/s	-
	8153348030 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	500 V	10 bar	5.7 l/s	-
8153348030 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	500 V	10 bar	5.7 l/s	-
	8153348032 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	500 V	13 bar	6.9 l/s	-
8153348032 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	500 V	13 bar	6.9 l/s	-
	8153348044 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	400 V	10 bar	5.7 l/s	-
8153348044 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	400 V	10 bar	5.7 l/s	-
	8153348046 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	400 V	13 bar	6.9 l/s	-
8153348046 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	400 V	13 bar	6.9 l/s	-
	8153348055 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	400 V+N	10 bar	5.7 l/s	-
8153348055 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	400 V+N	10 bar	5.7 l/s	-
	8153348056 Best-in-class variable speed drive oil-injected screw compressor	50 Hz	Yes	400 V+N	13 bar	6.9 l/s	-
8153348056 Best-in-class variable speed drive oil-injected screw compressor		50 Hz	Yes	400 V+N	13 bar	6.9 l/s	-
	8153348065 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 10bar, floor mounted	50 Hz	Yes	400 V	10 bar	5.7 l/s	-
8153348065 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 10bar, floor mounted		50 Hz	Yes	400 V	10 bar	5.7 l/s	-
	8153348067 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted	50 Hz	Yes	400 V	13 bar	6.9 l/s	-
8153348067 GA11 VSDS 11kW Best-in-class Variable Speed Screw Compressor with integrated dryer - 13bar, floor mounted		50 Hz	Yes	400 V	13 bar	6.9 l/s	-

Spezifikation	Wert
Produktdefinition
Air receiver mounted	Floor mounted
Cooling	Air cooled
Frequenz	50 Hz
Integrated dryer	Yes
Regulation	MK5 Touch No IO
Versorgungsspannung	230 V
Arbeitsdruck	13 bar
Daten auf dem Typenschild
Maximum air inlet temperature	46 °C
Abmessungen
Höhe	1495 mm
Länge	1095 mm
Weight	435 kg
Width	700 mm
Installationsanschlüsse
Compressed air outlet connections	0.75
Condensate drain connections Automatic ID	6
Condensate drain connections Automatic OD	8
Einschränkungen
Maximum operating temperature (°C)	46 °C
Minimum ambient temperature	0 °C
Leistungsdaten
Free Air Delivery at eff working pressure at max speed	32.3 l/s
Free Air Delivery at eff working pressure at min speed	6.4 l/s
Free Air Delivery at eff working pressure at max speed	26.6 l/s
Free Air Delivery at eff working pressure at min speed	6.3 l/s
Free Air Delivery at eff working pressure at min speed	6.9 l/s
Maximum working pressure	12.8 bar(g)
Referenzbedingungen
Absolute inlet pressure (bar(a))	1 bar(a)
Air inlet temperature (°C)	20 °C
Cooling medium inlet temperature	20 °C
Gerätedaten
Installed motor power (kW)	11 kW
